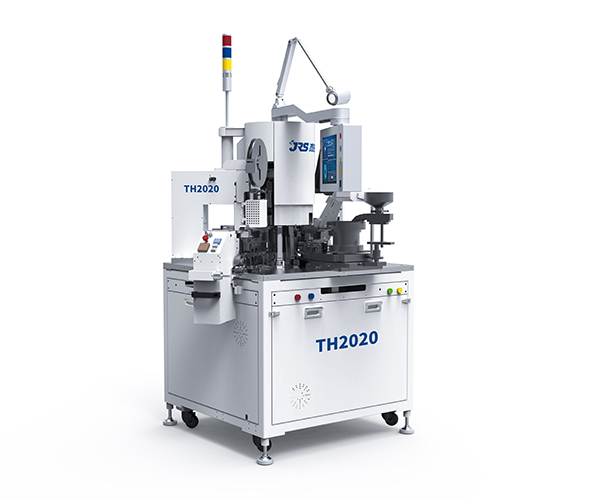

Turret Handler-JRS TH2020

Equipment parameters：

Description	Specifications
Model	TH2020
Application	Semiconductor Test, Inspection and Packaging
Package / Device Type	Suitable for All Package Series, Benchmarking against Leading Foreign Companies
Down Force Control	Testing Station(Dynamic): 4-30N ± 15%
Index Time	70ms
Performance Characteristic	UPH＞40000 MTBA＞2H Conversion Time≤2H Vision System Accuracy Platform Repeatability Overall Accuracy
User Interface	Windows 7-based Color Touchscreen Language: English and Chinese (Simplified), other upon Request
Interface	Network: Ethernet Capability I/O Parallel Interface for Tester and Laser SECS GEM & SMV (Optional) GPIB (Optional)
ESD	According to ANSI / ESD SP10.1 ESD Class 0 (Optional)
Input	Bowl, Tube, Tape
Output	Tape, Reel, Tube
Processes	Device Orientation Device Flip Test Contacting up to 8 Stations Laser Marking 6 Sides Vision Inspection Bulk, Tube Sorting Aotu Reel Changer
Inspection System	1D/2DMC Code Reader 2D/3D Optical Lense (Optional) Mark, Surface, 5S In-Tape, Post Sealing Inspection
Facility Requirements	Operating Voltage：AC 220V Air Pressure Requirement≥0.5MPA Power：6kw
Dimensions	Overall Dimension:130010001800mm Weight: 900kg
Standards	CE, UL

*The above parameters are subject to the actual product
